Model Number
Load Capacity
Lowered Height
Raised Height
Platform Dimensions
W X L
Standard                     Maximum
Lifting Speed
Standard Motor
TSHS SERIES- 24" TRAVEL

TSHS-4000-24-30-102-20
TSHS-8000-24-30-102-20
TSHS-12000-24-30-102-20
4000
8000
12000
8"
8"
8"
32"
32"
32"
30" X 102"                  54" X 126 "
30" X 102"                   54" X 126 "
30" X 102"                   54" X 126 "
28 SEC
56 SEC
84 SEC
1 H.P. INTERNAL
1 H.P. INTERNAL
1 H.P. INTERNAL
TSHS SERIES- 36 TRAVEL

TSHS-4000-36-30-114-20
TSHS-8000-36-30-114-20
TSHS-12000-36-30-114-20
4000
8000
12000
8"
8"
8"
44"
44"
44"
30" X 114"                     54" X 138"
30" X 114"                     54" X 138"
30" X 114"                      54" X138"
42 SEC
84 SEC
55 SEC
1 H.P. INTERNAL
1 H.P. INTERNAL
3 H.P. EXTERNAL
TSHS SERIES- 48 TRAVEL

TSHS-4000-48-30-138-20
TSHS-8000-48-30-138-20
TSHS-12000-48-30-138-20
4000
8000
12000
8"
8"
8"
56"
56"
56"
30" X 138"                     54" X 162"
30" X 138"                     54" X 162"
30" X 138"                     54" X 162"
23 SEC
46 SEC
69 SEC
3 H.P. EXTERNAL
3 H.P. EXTERNAL
3 H.P. EXTERNAL
TSHS SERIES- 60 TRAVEL

TSHS-4000-60-30-174-20
TSHS-8000-60-30-174-20
TSHS-12000-60-30-174-20
4000
8000
12000
10"
10"
10"
70"
70"
70"
30" X 174"                     54" X 198"
30" X 174"                     54" X 198"
30" X 174"                     54" X 198"
32 SEC
64 SEC
96 SEC
3 H.P. EXTERNAL
3 H.P. EXTERNAL
3 H.P. EXTERNAL
TSHS SERIES- 72 " TRAVEL

TSHS-4000-72-30-210-20
TSHS-8000-72-30-210-20
TSHS-12000-72-30-210-20
4000
8000
12000
12"
12"
12"
84"
84"
84"
30" X 210"                     54" X 240"
30" X 210"                     54" X 240"
30" X 210"                     54" X 240"
32 SEC
64 SEC
962 SEC
3 H.P. EXTERNAL
3 H.P. EXTERNAL
3 H.P. EXTERNAL

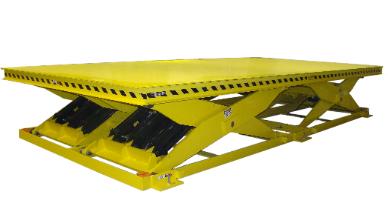

Apex Tandem Scissor Lift Table Series
The Tandem configuration is often found handling long and heavy loads. The back
to back set of scissor arms gives the scissor lift the stability to handle several type
of loads. Loads may include heavy equipment, automotive assemblies, wood,
furniture and a multitude of other products.

  • High Cycle Packages
  • Multiple Power Unit Options
  • Limit Switches
  • Central Lubrication Port System Available
APEX Ergonomic Scissor Lift Table Series
.
Model Number
Load Capacity
Lowered Height
Raised Height
Platform Dimensions
W X L
Standard                                 Maximum
Lifting Speed
Standard Motor
ESHS SERIES- 24" TRAVEL

ESHS-2000-24-30-50-15
ESHS-4000-24-30-50-15
ESHS-6000-24-30-50-15
2000
4000
6000
8"
8"
8"
32"
32"
32"
30" X 50"                                  54" X 74"
30" X 50"                                  54" X 74"
30" X 50"                                  54" X 74"
14 SEC
28 SEC
42 SEC
1 H.P. INTERNAL
1 H.P. INTERNAL
1 H.P. INTERNAL
ESHS SERIES- 36 " TRAVEL

ESHS-2000-36-30-50-15
ESHS-4000-36-30-50-15
ESHS-6000-36-30-50-15
2000
4000
6000
8"
8"
8"
44"
44"
44"
30" X 54"                                  54" X 78"
30" X 54"                                  54" X 78"
30" X 54"                                  54" X 78"
14 SEC
28 SEC
42 SEC
1 H.P. INTERNAL
1 H.P. INTERNAL
1 H.P. INTERNAL
ESHS SERIES- 48" TRAVEL

ESHS-2000-48-30-50-15
ESHS-4000-48-30-50-15
ESHS-6000-48-30-50-15
2000
4000
6000
8"
8"
8"
56"
56"
56"
30" X 66"                                  54" X 96"
30" X 66"                                  54" X 96"
30" X 66"                                  54" X 96"
14 SEC
28 SEC
42 SEC
1 H.P. INTERNAL
1 H.P. INTERNAL
1 H.P. INTERNAL

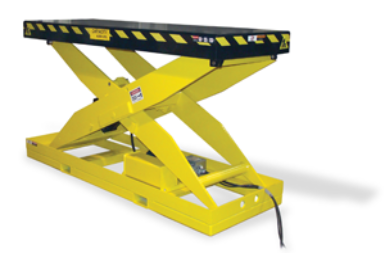

The Apex Ergonomic Series Scissor Lift Table is the most versatile production tool
that an assembly shop or manufacturing facility could utilize. This is the base product
of the Apex scissor lift family and is great example or Uni-Craft Corp.’s heavy duty
construction and manufacturing experience. This ergonomic workhorse will provide
your facility with increased productivity while providing the worker with the perfect
ergonomic tool to eliminate the twisting, bending and lifting that is often associated
with most assembly applications.

  • Hand Tool Removable Bushings
  • Hand Pendant Controller with 10 Foot Leads
  • Optional Power Units Available
  • Central Lubrication Port System Available

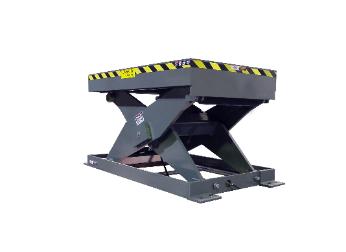

Heavy Duty Scissors Lift Table Series
.
Capacities ranging from 8,000 lbs to 20,000 lbs. sets this series apart from all
others. Uni-Craft Corp. utilizes its heavy duty construction and manufacturing
experience to provide the ultimate workhorse. This lift will easily accommodate
large assembly or welding applications found in the automotive, steel or heavy
equipment industries.

  • High Cycle Packages
  • Multiple Power Unit Options
  • Limit Switches
  • Central Lubrication Port Systems Available
Model Number
Load Capacity
Lowered Height
Raised Height
Platform Dimensions
W X L
Standard                     Maximum
Lifting Speed
Standard Motor
HDHS SERIES- 24" TRAVEL

HDHS-8000-24-36-60-20
HDHS-12000-24-40-60-20
HDHS-15000-24-48-72-20
HDHS-20000-24-48-72-20
8000
12000
15000
20000
10.5"
10.5"
16"
16"
34.5"
34.5"
40"
40"
36" X 60"                     60" X 84"
40" X 60"                     64" X 84"
48" X 72"                     72" X 96"
48" X 72"                     72" X 96"
14 SEC
28 SEC
28 SEC
42 SEC
5 H.P. EXTERNAL
5 H.P. EXTERNAL
5 H.P. EXTERNAL
5 H.P. EXTERNAL
HDHS SERIES- 36 " TRAVEL

HDHS-8000-36-36-60-20
HDHS-12000-36-40-60-20
HDHS-1500036-48-78-20
HDHS-20000-36-48-78-20
8000
12000
15000
20000
10.5"
10.5"
16"
16"
46.5"
46.5"
52"
52"
36" X 60"                     60" X 84"
40" X 60"                     64" X 84"
48" X 72"                     72" X 96"
48" X 72"                     72" X 96"
14 SEC
28 SEC
28 SEC
42 SEC
5 H.P. EXTERNAL
5 H.P. EXTERNAL
5 H.P. EXTERNAL
5 H.P. EXTERNAL
HDHS SERIES- 48 " TRAVEL

HDHS-8000-48-36-70-20
HDHS-12000-48-40-70-20
HDHS-15000-48-48-84-20
HDHS-20000-48-48-84-20
8000
12000
15000
20000
10.5"
10.5"
16"
16"
58.5"
58.5"
64"
64"
36" X 60"                      60" X 84"
40" X 60"                      64" X 84"
48" X 72"                      72" X 96"
48" X 72"                      72" X 96"
14 SEC
28 SEC
28 SEC
42 SEC
5 H.P. EXTERNAL
5 H.P. EXTERNAL
5 H.P. EXTERNAL
5 H.P. EXTERNAL
HDHS SERIES- 60 " TRAVEL

HDHS-8000-60-36-86-20
HDHS-12000-60-40-86-20
HDHS-15000-60-48-102-20
HDHS-20000-60-48-102-20
8000
12000
15000
20000
11.5"
11.5"
16"
16"
71.5"
71.5"
76"
76"
36" X 86"                   60" X 108"
40" X 86"                   64" X 108"
48" X 102"                 72" X 126"
48" X 108"                 72" X 132"
14 SEC
28 SEC
28 SEC
42 SEC
5 H.P. EXTERNAL
5 H.P. EXTERNAL
5 H.P. EXTERNAL
5 H.P. EXTERNAL
HDHS SERIES- 72 " TRAVEL

HDHS-8000-36-30-50-15
HDHS-12000-36-30-50-15
8000
12000
16"
16"
88"
88"
36" X 102"                  60" X 120"
36" X 102"                  60" X 120"
14 SEC
42 SEC
5 H.P. EXTERNAL
5 H.P. EXTERNAL
c
c
c
.
Model Number
Load Capacity
Lowered
Height
Raised Height
Platform Dimensions
W X L
Standard             Maximum
Lifting
Speed
Standard Motor
MTHS SERIES- 36" TRAVEL

MTHS-2000-36-30-36-20
ESHS-4000-36-30-36-20
ESHS-6000-36-30-36-20
2000
4000
6000
12"
12"
12"
49"
49"
49"
30" X 36"                       48" X 48"
30" X 36"                       48" X 48"
30" X 36"                       48" X 48"
20 SEC
40 SEC
42 SEC
3 H.P. EXTERNAL
3 H.P. EXTERNAL
3 H.P. EXTERNAL
MTHS SERIES- 48 " TRAVEL

ESHS-2000-48-30-42-20
ESHS-4000-48-30-42-20
ESHS-6000-48-30-42-20
2000
4000
6000
12"
12"
12"
60"
60"
62"
30" X 42"                       48" X 60"
30" X 42"                       48" X 60"
30" X 42"                       48" X 60"
13 SEC
25 SEC
38 SEC
3 H.P. EXTERNAL
3 H.P. EXTERNAL
3 H.P. EXTERNAL
MTHS SERIES- 60 " TRAVEL

ESHS-2000-60-30-54-20
ESHS-4000-60-30-54-20
ESHS-6000-60-30-54-20
2000
4000
6000
13.5"
14"
14"
73.5"
74"
74"
30" X 54"                       48" X 66"
30" X 54"                       48" X 66"
30" X 54"                       48" X 66"
20 SEC
40 SEC
50 SEC
3 H.P. EXTERNAL
3 H.P. EXTERNAL
3 H.P. EXTERNAL
MTHS SERIES- 72 " TRAVEL

ESHS-2000-72-30-54-20
ESHS-4000-72-30-54-20
ESHS-6000-72-30-54-20
2000
4000
6000
13.5"
14"
14"
85.5"
86"
86"
30" X 54"                       48" X 72"
30" X 54"                       48" X 72"
30" X 54"                       48" X 72"
26 SEC
40 SEC
52 SEC
3 H.P. EXTERNAL
3 H.P. EXTERNAL
3 H.P. EXTERNAL
MTHS SERIES- 84 " TRAVEL

ESHS-2000-84-30-70-20
ESHS-4000-84-30-70-20
ESHS-6000-84-30-70-20
2000
4000
6000
13.5"
14"
14"
102"
102"
102"
36" X 70"                       54" X 90"
36" X 70"                       54" X 90"
36" X 70"                       54" X 90"
34 SEC
52 SEC
68 SEC
3 H.P. EXTERNAL
3 H.P. EXTERNAL
3 H.P. EXTERNAL
MTHS SERIES- 96" TRAVEL

ESHS-2000-96-30-78-20
ESHS-4000-96-30-78-20
ESHS-6000-96-30-78-20
2000
4000
6000
18"
18"
18"
114"
114"
114"
36" X 78"                     54" X 108"
36" X 78"                     54" X 108"
36" X 78"                     54" X 108"
43 SEC
66 SEC
86 SEC
3 H.P. EXTERNAL
3 H.P. EXTERNAL
3 H.P. EXTERNAL
MTHS SERIES- 120 " TRAVEL

ESHS-2000-120-30-96-20
ESHS-4000-120-30-96-20
2000
4000
18"
18"
138"
138"
36" X 96"                     54" X 120"
36" X 96"                     54" X 120"
41 SEC
62 SEC
3 H.P. EXTERNAL
3 H.P. EXTERNAL

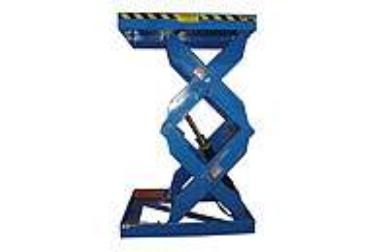

Apex Multi-Tier Scissor Lift Table Series
The Multi-Tier Configuration is the perfect scissor lift table when only a small
footprint is available but a high amount of travel is needed. The distances of
travel on the APEX Multi-Tier Series range from 36" up to 120" with many
platform sizes available. This lift series will be found in almost any
manufacturing facility.

  • Lube for Life Bushing
  • Precision Cam followers for extended life and smoother motion
  • Heavy Duty Steel Plate Construction
  • Welded Bosses at Each Pivot Point
